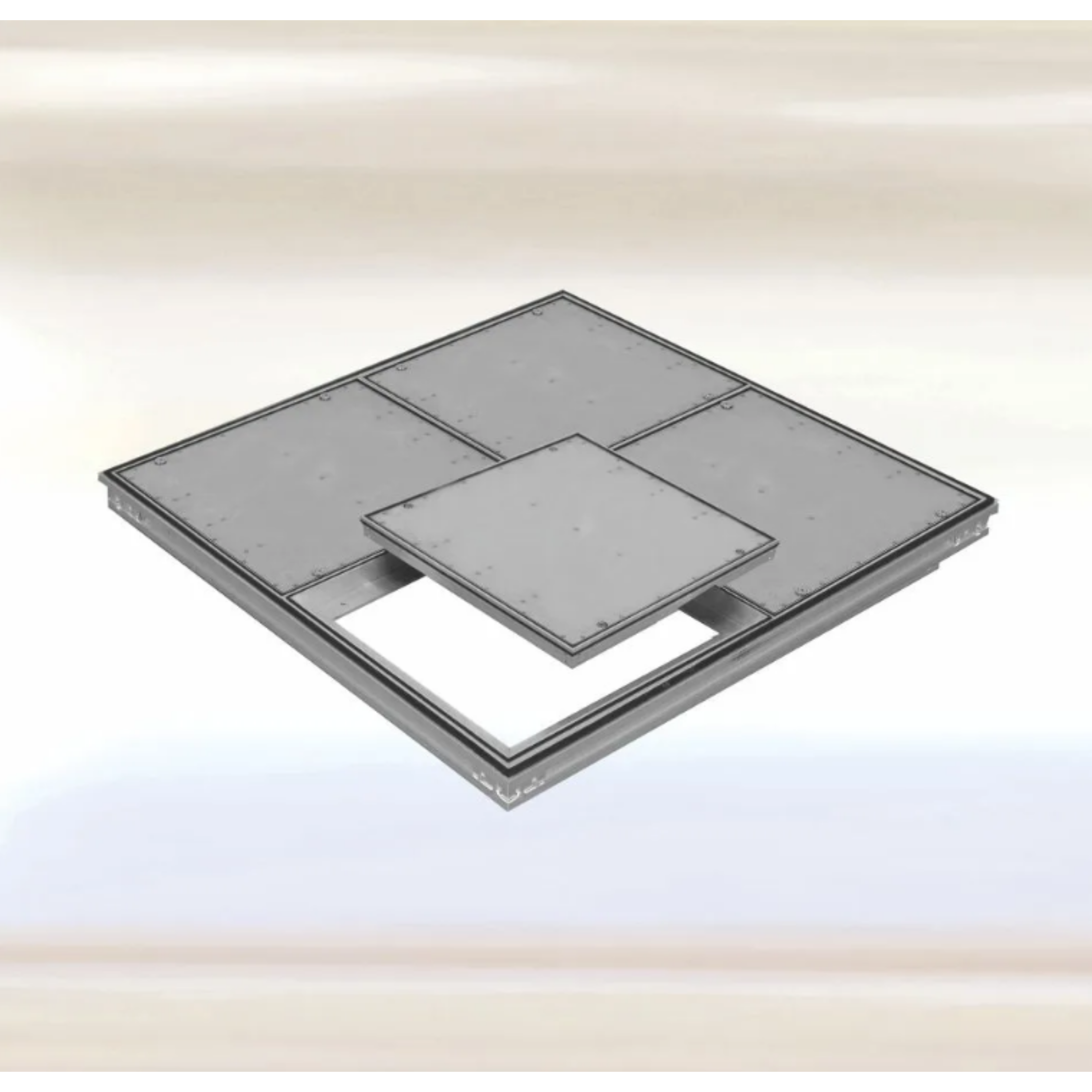

Floor Access Cover, Multi-door Visedge

The Series Visedge multidoor configuration applies the Visedge approach to a multi-door layout, useful when inspection requires separate access points while keeping a minimally intrusive aesthetic.

Main technical features

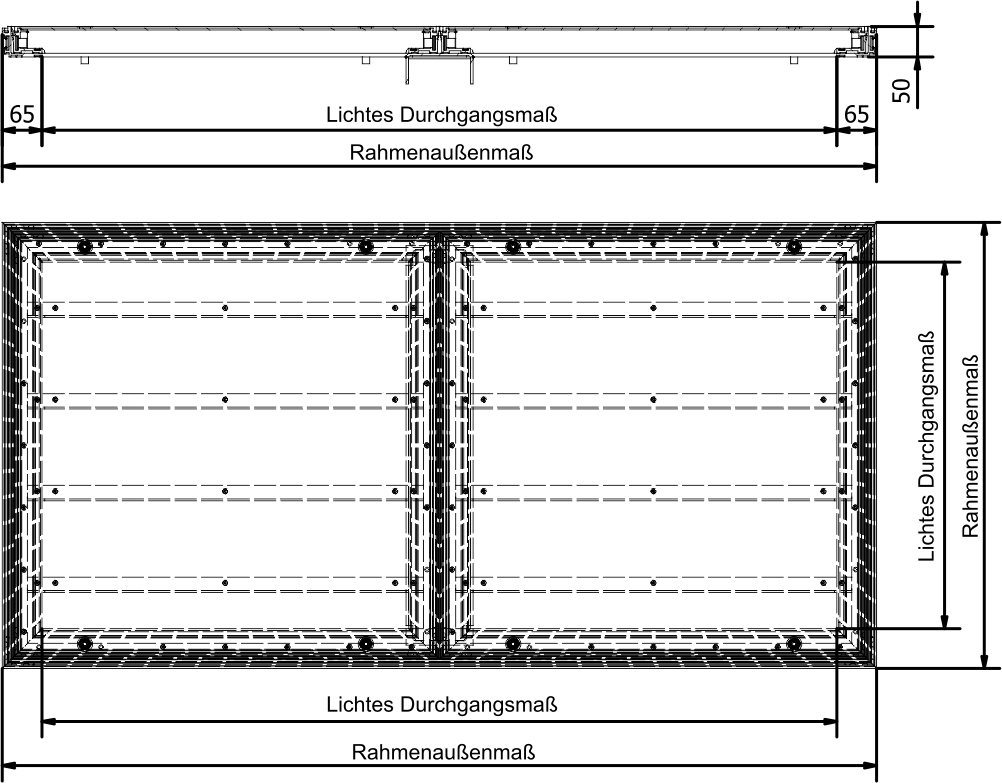

The floor access cover is made with an aluminum frame. The installation height is 50 mm and the recommended filling thickness is max 3 mm. It features three special gaskets along the entire perimeter. The frame is embedded in concrete at floor level.
The lid is fixed to the frame with 4 tightening screws and can be removed with special lifting keys. The tray can be filled with vinyl, Linoleum, carpet and other elastic materials. It is intended for indoor floor ducts.

Advantages

⦁    Multidoor configuration
⦁    Thin filling (max 3 mm)

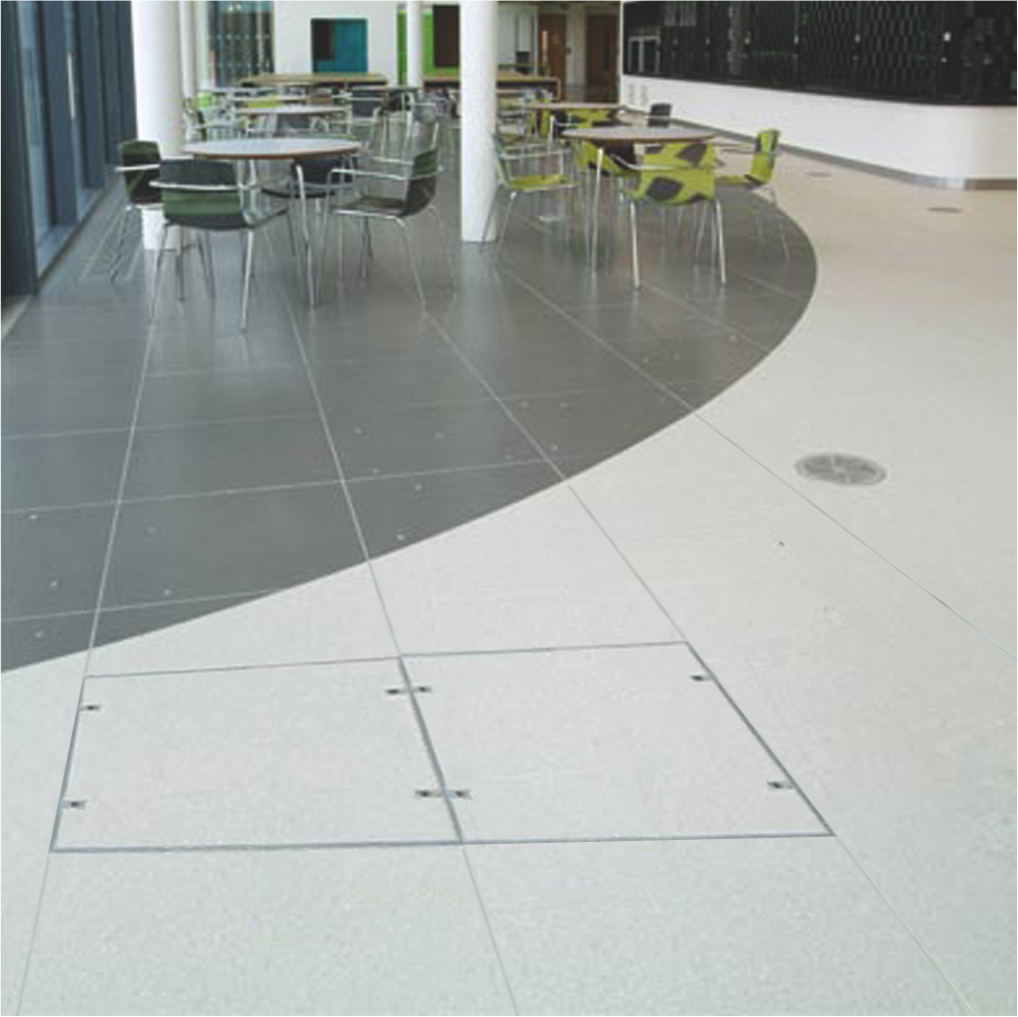

⦁    Almost invisible when installed
⦁    Easier opening thanks to the conical construction design
⦁    Own production with short lead times

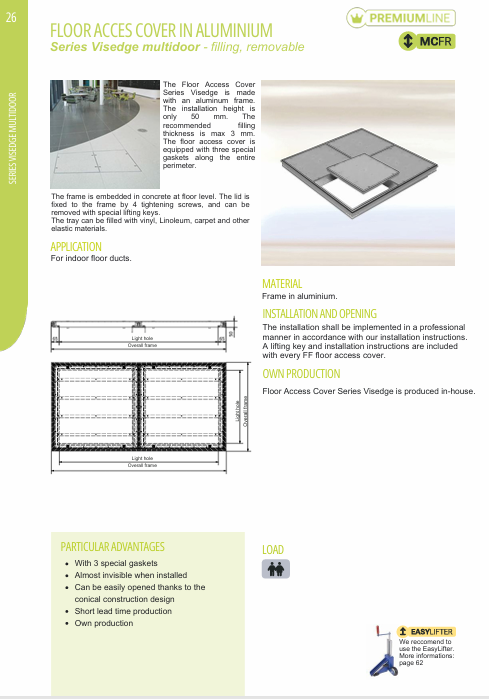

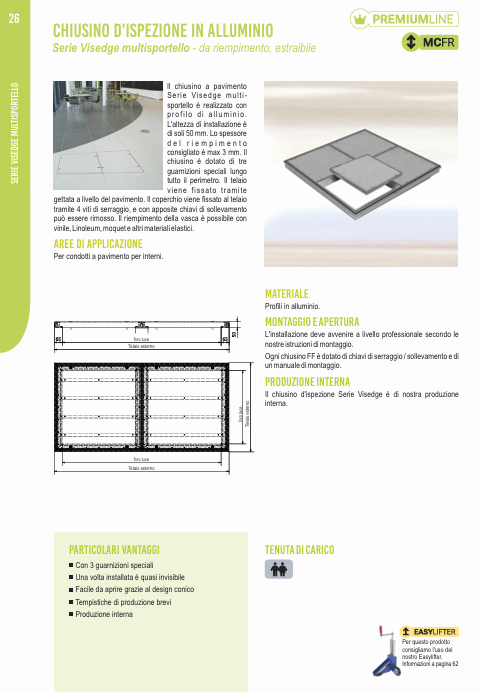

On Syncronia you can download for free images, catalogs, and the Series Visedge multidoor aluminium technical datasheets, with documents useful for specification and project integration.
