Inspection manhole, 5 Bar aluminium series - knurled plate

Overview

Series 5 Bar is an aluminium floor access cover designed for technical access points where a walkable, non-slip tread plate lid is required. It is a practical solution for inspection systems on indoor and outdoor floors.

Technical features

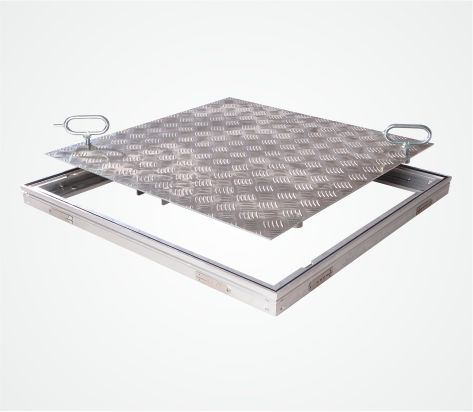

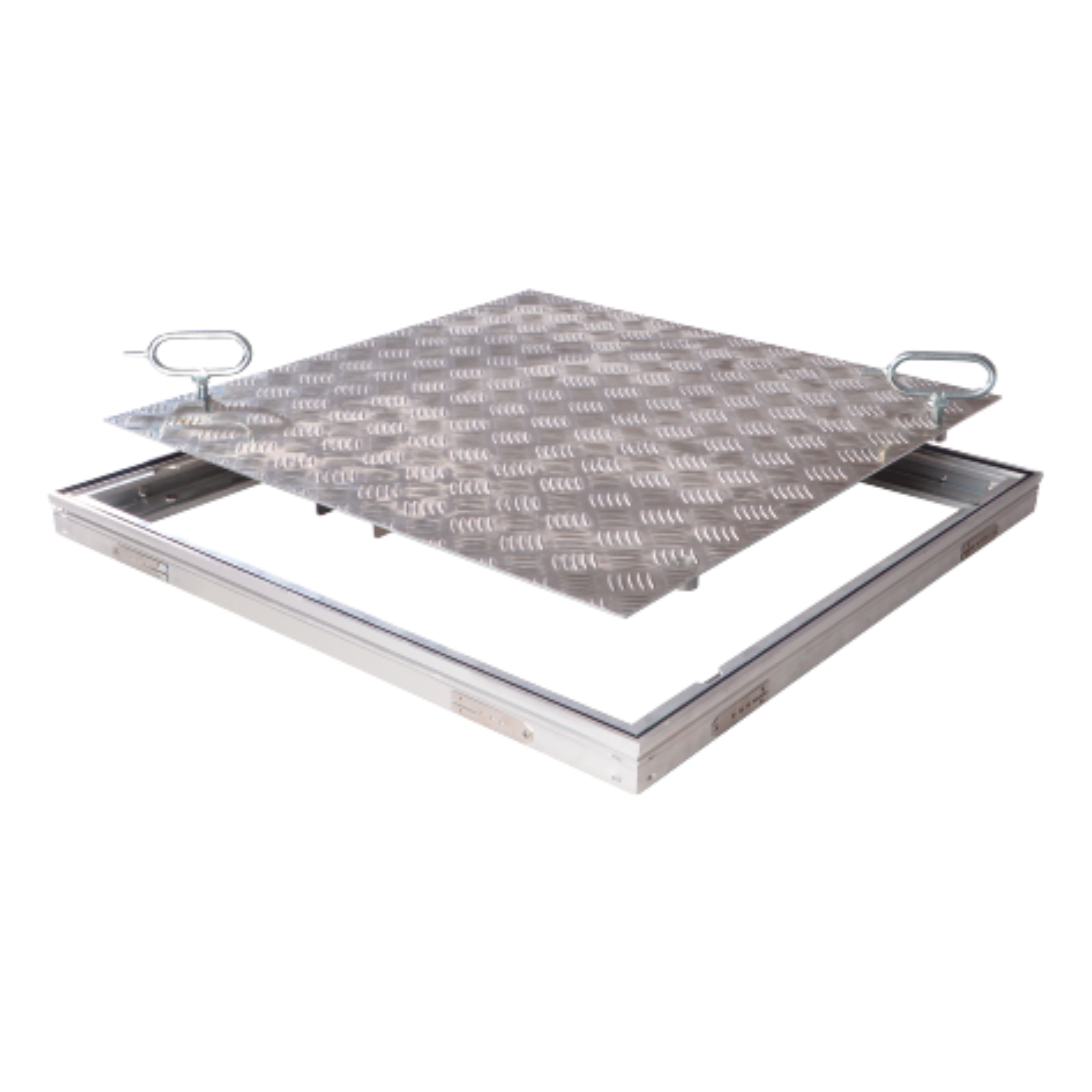

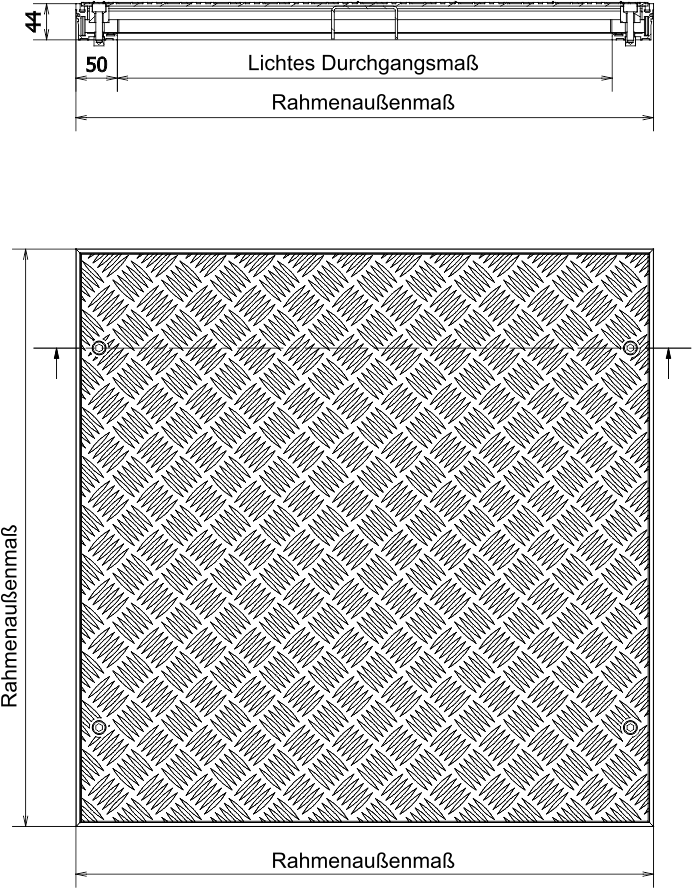

The floor access cover is made of aluminum and is equipped with a special gasket along the entire perimeter. The walkable lid is a tread plate of aluminium. The lid is fixed to the frame by 4 tightening screws, and can be removed with special lifting keys. It has an installation height of only 44 mm, with crossed reinforcement profiles and a weather-resistant special sealing joint. Possible use of the comfort key.

Project advantages

⦁    Tread plate surface supports walkability with a technical aesthetic.
⦁    Reduced installation height helps where build-up thickness is limited.

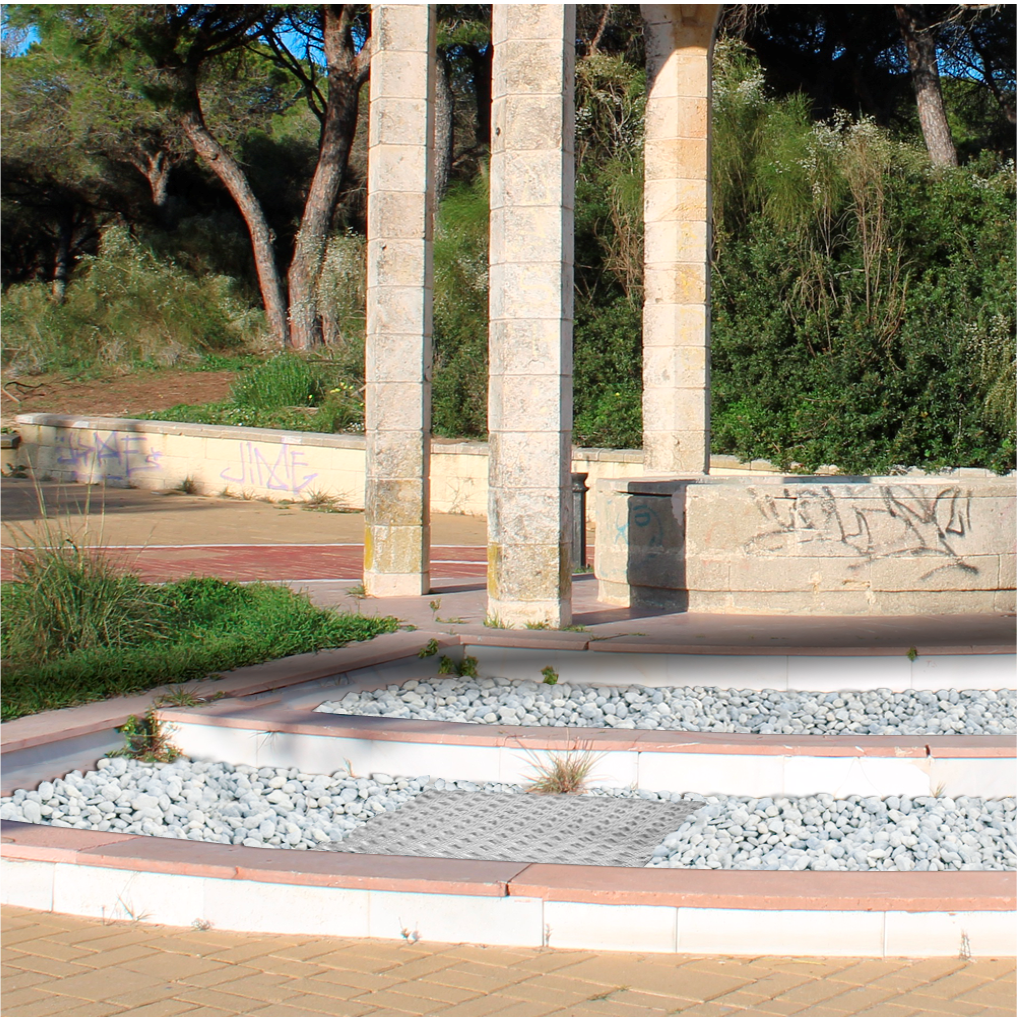

⦁    For indoor and outdoor floor ducts.

Operational notes

Finished level coordination and frame flatness affect appearance and lid removability.

Download documentation on Syncronia

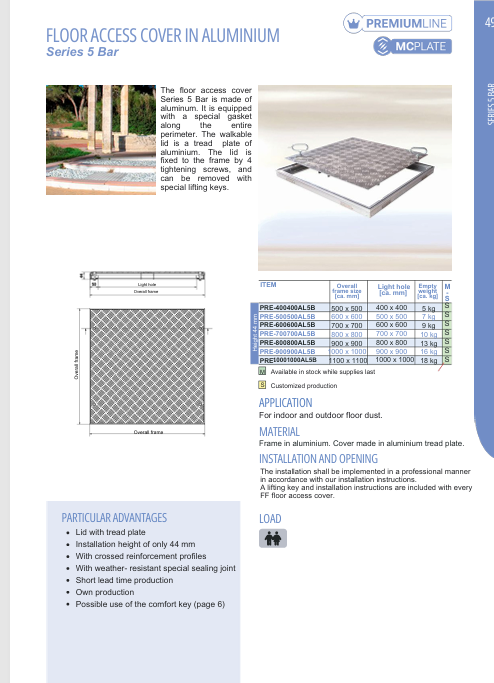

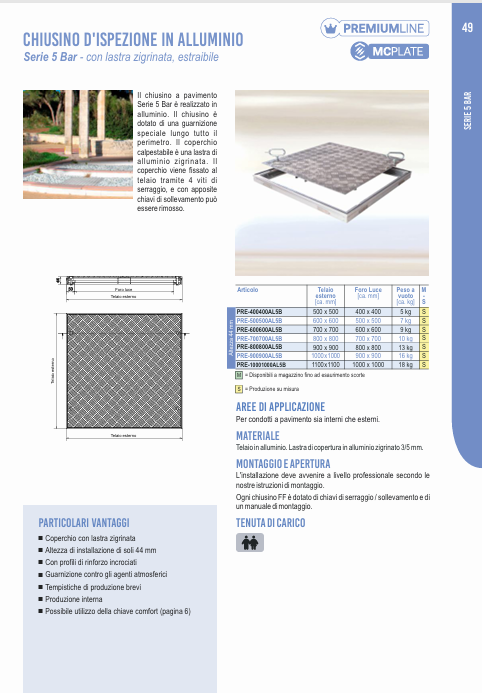

On Syncronia.com you can free download images, catalogues and technical data sheets download for Series 5 Bar, with official documentation to integrate it into your project.
