Floor Access Cover, MA-TH

Overview

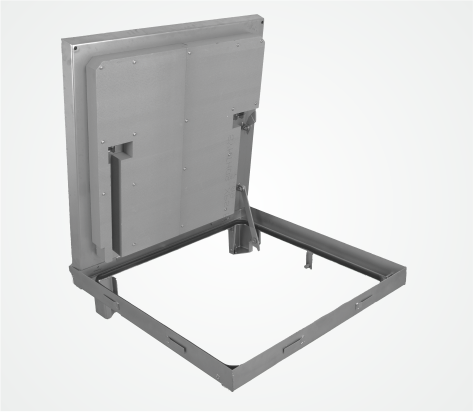

System MA-TH is a stainless steel floor access cover with thermal protection and assisted opening. It is suitable where technical access is frequent and handling becomes a key project requirement, while maintaining a robust and professional detail.

Technical features

The floor access cover is made of 2.5 mm stainless steel. The tray depth is 50 mm and the installation height is 77 mm. The frame is equipped with a special frost- and weather-resistant sealing joint to protect against seepage and odor leakage. The frame is fixed by casting at floor level. The tray can then be filled and inserted into the frame and the pistons can then also be mounted. The opening is supported by two gas pistons allowing it to be opened and closed by a single person. Safety is ensured by a fall arrest device. It includes a 60 mm thermal plate. It is suitable for indoor and outdoor floor ducts, and especially for covers opened frequently such as in technical rooms and pools.

Project advantages

⦁    Power-assisted opening supports intensive use and recurring maintenance.
⦁    Robust stainless steel detailing with perimeter sealing management.
⦁    Designed to simplify operations while maintaining quality and safety.

Operational notes

Coordinate sizing and opening frequency with maintenance procedures and the selected filling build-up.

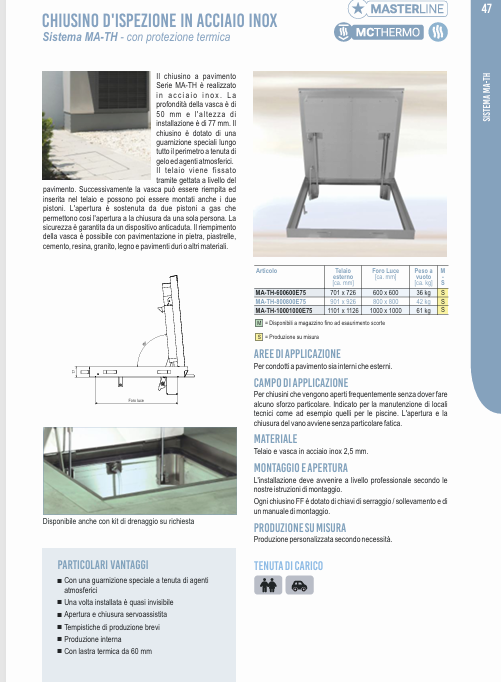

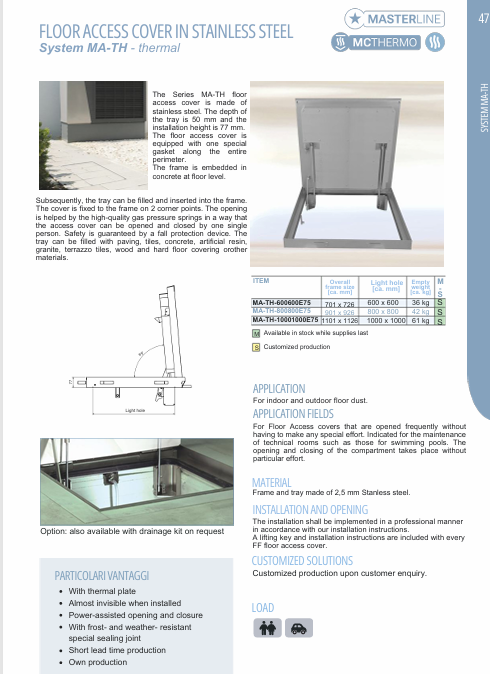

Download documentation on Syncronia

On Syncronia.com you can free download images, catalogues and technical data sheets download for System MA-TH, with official files to integrate it into your project.
